ChuMoy's PCB DIY Kit

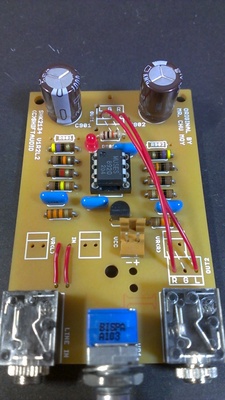

Great music that played from simple circuit. You can make by yourself, the kit "ChuMoy headphones amplifier"
In this kit, original PCB(Printed Circuit Board), the OpAmp, resistors, film capacitors, electrolytic capacitors, terminals, volume, the wiring materials.
You can make with own nippers, soldering iron, wire solder, the battery(9V / 006P).

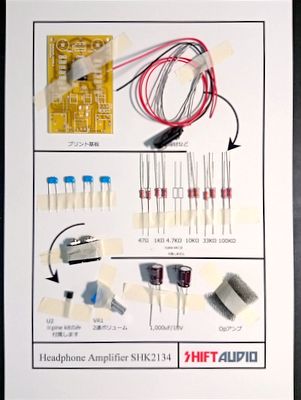

pine kit
the Kit with audio-grade parts.

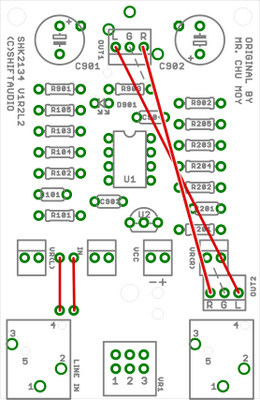

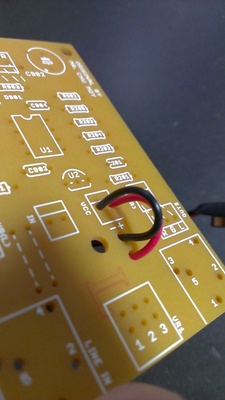

- the PCB ShiftAudio's original
- OpAmp : NJM's Audio grade opamp, MUSES8920
- Resistors: : TAKMAN REX "The Pink"
- Film capacitors : Nissei MMT
- Electrolytic capacitors : Nippon Chemi-Con KMG
- Volume : RD925G(ALPS RK097 compatible)
- Terminals : 1/8inch(3.5mm) stereo mini TRS phone jack
- Virtual GND : by TLE2426
- with simple circuit diagram
$38.99USD(available on Amazon.com)

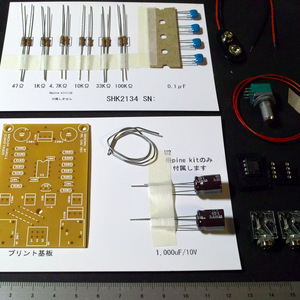

bamboo kit
the Kit with standard-grade parts.
- the PCB ShiftAudio's original
- OpAmp : BB OPA2134
- Resistors : general
- Film Capacitors : general
- Electrolytic capacitors : Nippon Chemi-Con KMG
- Volume : RD925G(ALPS RK097 compatible)
- Terminals : 1/8inch(3.5mm) stereo mini TRS phone jack
- Virtual GND : by resistors
- with simple circuit diagram
$26.99USD
Shipping
We use shipping with YAMATO or DHL. For example, to USA, about $10.00.
And we can ship only unregulated country, because it is contain lead. This is not RoHS.
Downloads
Photos
How to build on YouTube
Order
Send me a help@shiftaudio.com, order sheet.
We will reply the INVOICE with shipping price.
You can pay with PayPal.
